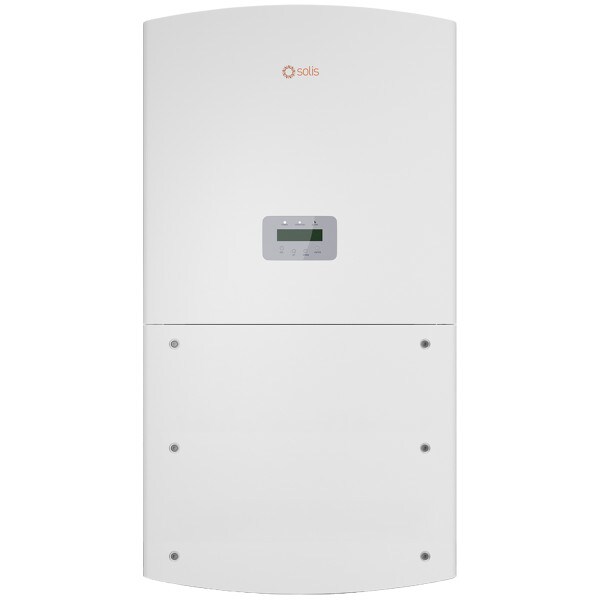

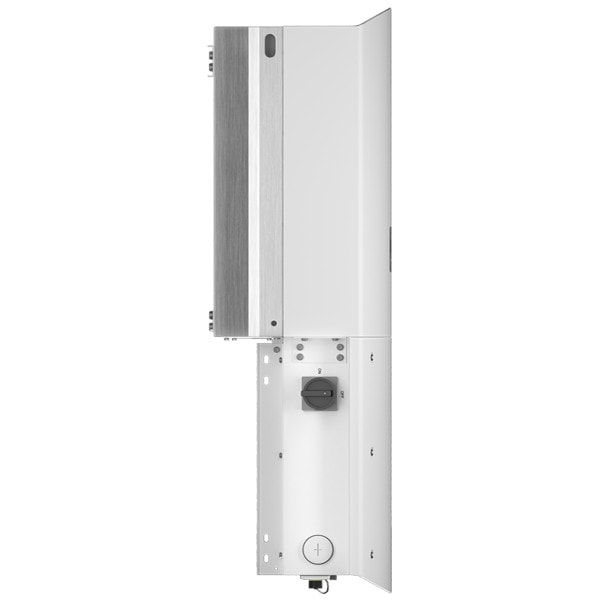

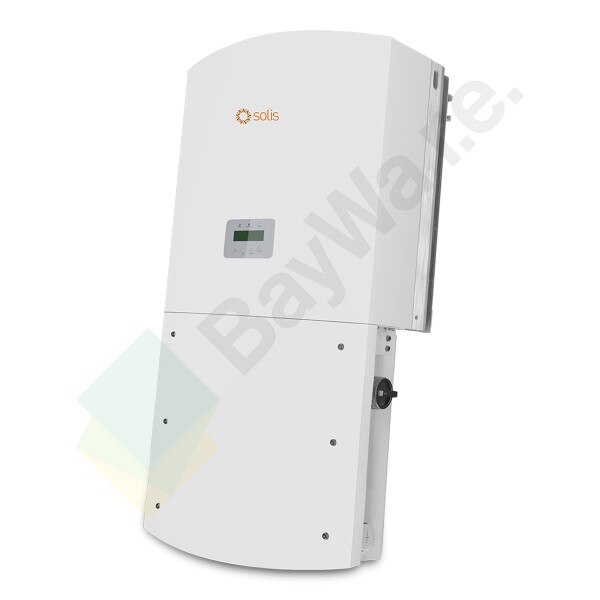

Solis-50K-US-F-LSW, 50kW, 1000Vdc, Three Phase

Solis-50K-US-F-LSW & Solis-(50-66)K-LWB-SPRT 50kW 3ph 1000Vdc; 480Vac 4 MPPT w/AFCI & SunSpec TX

The Solis-(50-66)K three phase series string inverters are suitable for commercial and light industrial PV plants. These units have a compact and lightweight design making them an easy two-person installation. The ultra-low THDi of ˂2% and filter features add multiple layers of protection for the grid.  Solis 50-66K inverters can be parallel-connected up to 6 MW. For easy installation and O&M, these units have a separable wiring box allowing the EPC to install the wiring box ahead of time and add the inverter at a later time. To finish it off these units have multiple options of communications with free Solis APPs and PC monitoring on SolisCloud.

Product Features

• Wide voltage range and low startup voltage
• 10 years standard warranty with extension options
• Transformer-less three phase design with 480Vac output
• Web-based data monitoring with downloadable Solis Mobile App
• Max. efficiency 98.8% (CEC efficiency 98.4%) with ultra-low start up voltage
• Compact and lightweight design inside a corrosion-resistant NEMA 4X enclosure
• Designed for all commercial, industrial, and utility-scale applications Industry-leading 4 MPPT designs with fast (<5 sec.) MPPT response times
• RS-485 Modbus communication protocol with Wi-Fi interface
