Solis-40K-US-F-LSW, 40kW, 1000Vdc, Three Phase
Product Details
Solis-40K-US-F-LSW & Solis-(25-40)K-LWB-SPRT 40kW 3ph 1000Vdc; 480Vac 3 MPPT w/AFCI & SunSpec TX

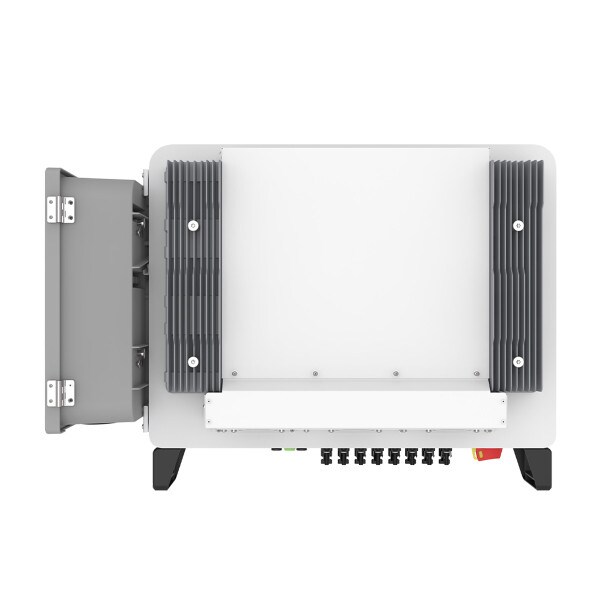

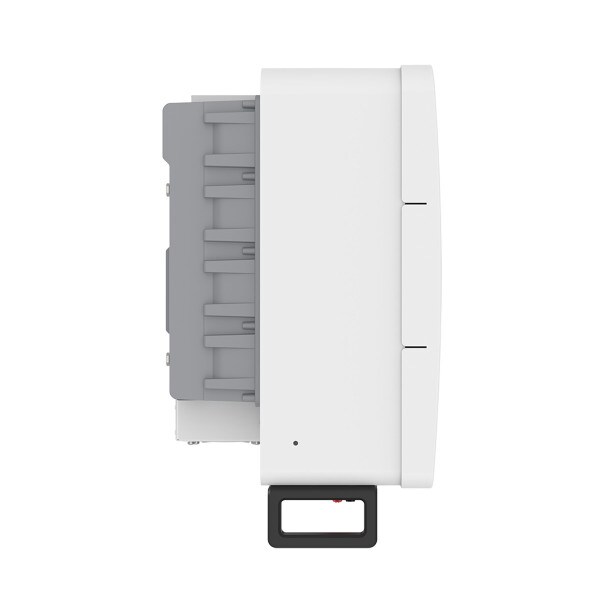

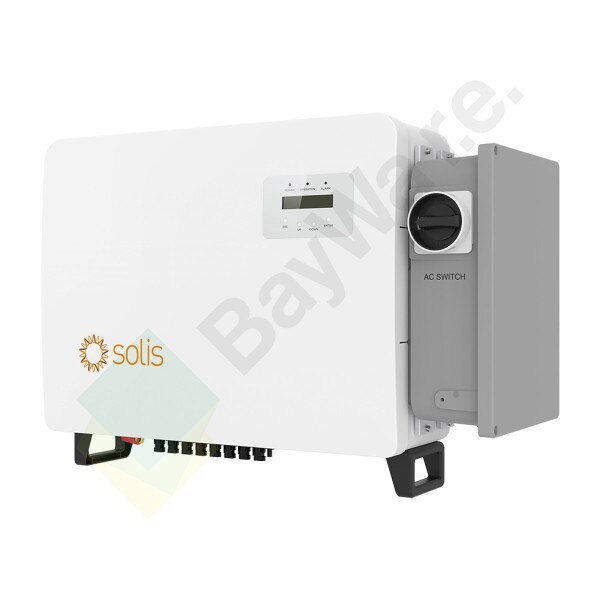

Solis-(25-40)K three phase series string inverters utilize a 3 MPPT design to give PV system designers and installers more flexibility to optimize their PV string-sizing configuration for increased energy production and a reduced environmental impact. These NEMA 4X inverters come standard with a separable wiring box which results in increased installation safety and fast, efficient maintenance operations.
Product Features
- 7” LCD color display
- Wide voltage range and low startup voltage
- 10 Year Standard Warranty with extension options
- Transformer-less three phase design with 480Vac output
- RS-485 Modbus communication protocol with Wi-Fi interface
- Web-based data monitoring with downloadable Solis Mobile App
- Max. efficiency 98.6% (CEC efficiency 98.3%) with ultra-low start-up voltage
- Designed for all commercial, industrial and utility scale applications Industry-leading 3 MPPT designs with fast (<5 sec) MPPT response times
- AFCI protection, proactively reduces fire risk
- Compact and lightweight design inside a corrosion-resistant NEMA 4X enclosure
