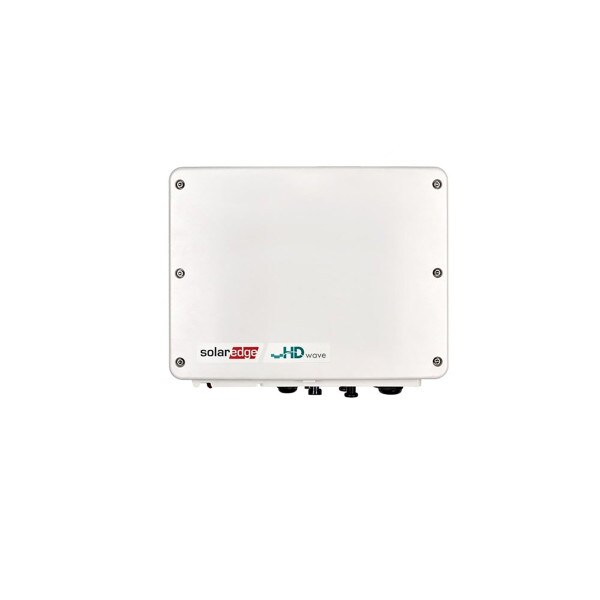

SolarEdge SE6000H-US 6kW Home Wave
Product Details
The SolarEdge single phase inverter with Home-Wave technology breaks the mold of traditional solar inverters. Winner of the prestigious 2016 Intersolar Award and the renowned 2018 Edison Award, the single phase Inverter is specifically designed to work with SolarEdge power optimizers and features a standard 12-year warranty extendable to 20 or 25 years.
Manufacturer Part Number: SE6000H-US000BNU4
Max. Output Power: 6000W@240V or 5000W@208V
Output Voltage Range: 211-264VAC
Max. Input Voltage: 480VDC
Peak Efficiency: 99.2%
Maximum Output Current: 25.0A@240V or 24.0A@208V
Protective Devices: Rapid shutdown (NEC 2014 & 2017 690.12)
DC Input AWG Range (# of strings): 14-6AWG (1-2)
Compliance: Safety (UL1741, UL1741SA, CSA C22.2, Canadian AFCI according to T.I.L M-07); Grid connection standards (IEEE1547, Rule 21, Rule 14 (HI)); Emissions (FCC Part 15 Class B).
Shipping weight: 27 lb
Shipping dimensions: 14.6 x 6.8 x 17.7 in
Pallet Qty: 24
