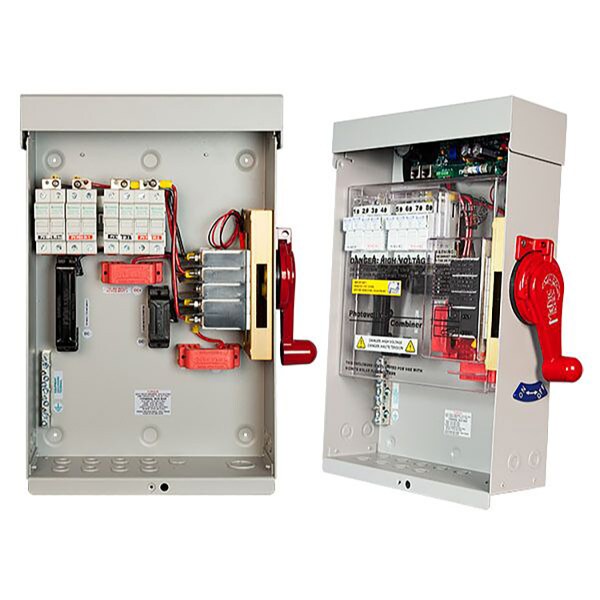

MidNite Solar MNPV8HV-DLTL 3R, 8 Pos. Locking combiner w/Disconnect, 4 in 2 out for 2 MPPT TL

The MNPV8HV-DLTL 3R's red handle is LOCKABLE IN THE OFF POSITION!

SMA requested MidNite Solar to design and build these DLTL combiners. There are 4 strings entering the combiner with 2 separate strings out. Specifically designed for the new dual channel MPPT on transformer-less inverters.

The difference between the regular Disco combiner and the DLTL version is that the MNPV8HV-Disco-4X is made for a single 8 string inverter, two 4 string inverters or one 4 string transformerless where as the DLTL is set up for 4 strings in and 2 strings out for Dual MPPT on transformerless.

Product Features

• Type 3R aluminum enclosure (No Rust)
• Number of Fuse Holders (MNTS) installed - 8
• 8 - 15 amp fuses installed
• Current Rating - 60A
• Max. Output Wire Size - 2/0
• Output Circuits - 2
• 90 degree C connections
• See through dead front and color coded bus bar guards
• #10 AWG wire internally
• Warranty - 5 yrs.
• Listed by ETL for US
• Made in the USA

Hardware Includes

• Four - Strain Reliefs
• Four - 1/2" LOCKNUTS
• One BLUE WRENCH (MNWRENCH)
