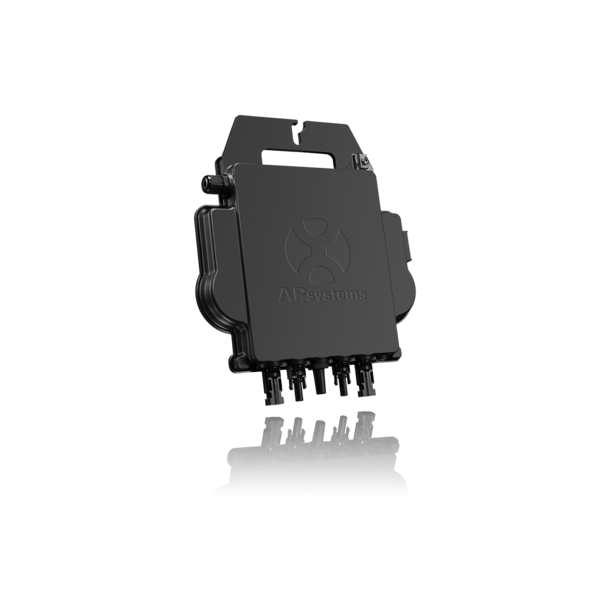

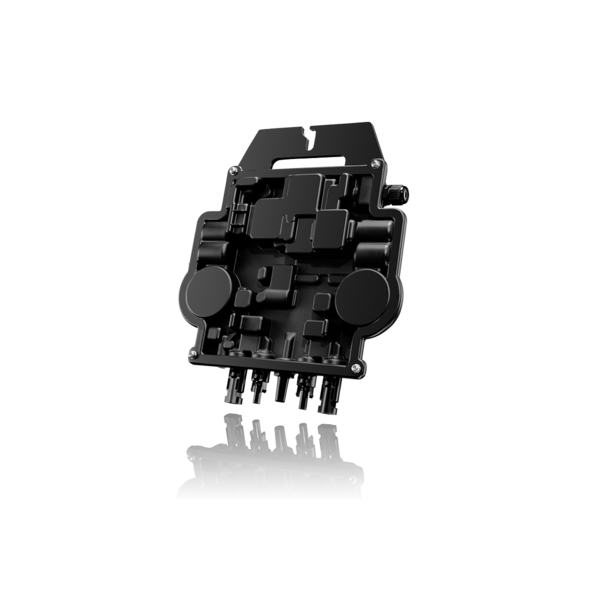

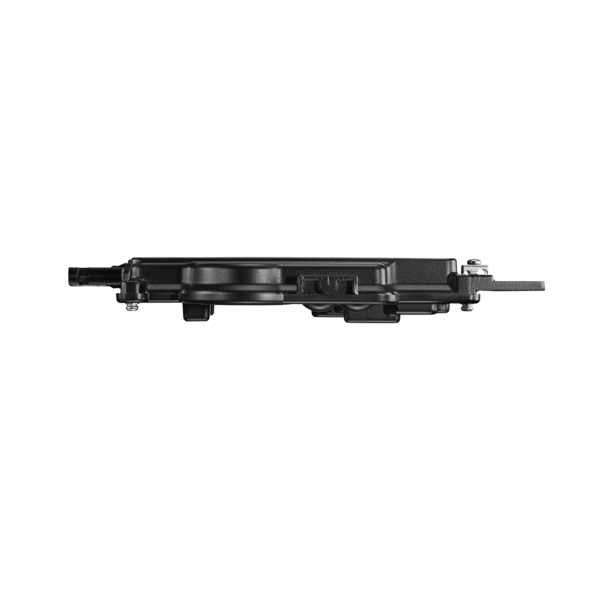

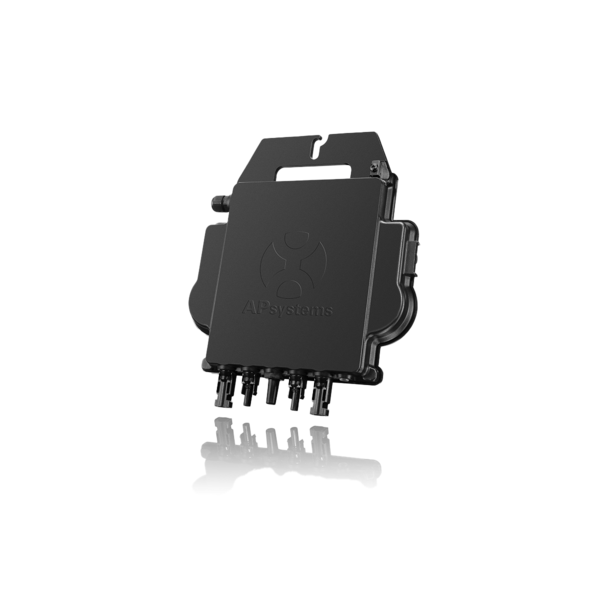

APsystems DS3 880W Microinverter

(0)No Reviews yet
SKU: APS-1301

Technical Details

Manufacturer Part Number: DS3 | Maker: APsystems
Watt: 880
Input Voltage (Vdc): 60 Volt | Output Voltage (Vac): 240 Volt
Phase: 1-phase | Inverter Type: Grid-tied
Efficiency: 97 %
Shipping Weight: 5.7 lb

8/Case & 192/Pallet

Product Details

APsystems’ 3rd generation of dual-module microinverters, the DS3 product family represents the culmination of years of power conversion expertise and innovation in high-efficiency, high-density power conversion to maximize the peak performance of today’s high-capacity PV modules.

The DS3 series reaches unprecedented levels of power output and is fully backwards compatible with QS1 and YC600 microinverters and accessories. It features 2 input channels, each with independent MPPT, and encrypted wireless Zigbee communication.
An innovative and compact design makes the product lighter while maximizing power production, and silicone-encapsulated components reduce stress on electronics, facilitate thermal dissipation, and enhance weatherproofing. Reliability is significantly increased thanks to 20% fewer components than previous generations.

The DS3 series is grid-interactive and fully compliant with CA Rule 21 requirements. With its unparalleled performance, efficiency of 97%, and increased reliability, the APsystems DS3 series is a gamechanger for residential and commercial solar.

Key Features

  • One microinverter connects to two solar modules
  • Max output power reaching 880 VA
  • Two independent input channels (MPPT)
  • CA Rule 21 (UL 1741 SA) compliant
  • NEC 2020 690.12 Rapid Shutdown Compliant
  • Encrypted Wireless Zigbee Communication
